Panel Fence

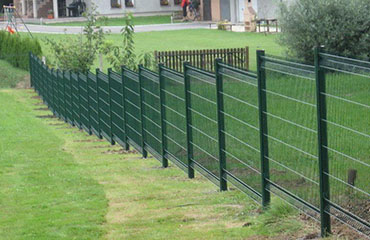

Panel fence is a rigid, V-bend fence panel produced by spot-welding galvanized wires on fully automatic machines. At Konakoğulları, we have been manufacturing panel fence at our facility in Aksaray Organized Industrial Zone since 1972.
What Is Panel Fence?
Panel fence is also known as corrugated welded fence, 3D fence or panel wire fence. The "V"-shaped bends in the panel add extra rigidity, so the product stays lightweight yet durable.
Suitable metal thicknesses are used in the panels and connection posts to resist corrosion. The wires are first galvanized, then coated with a weather-resistant polyester-based paint using an electrostatic oven-baking system. This gives the panel a long service life against rust and colour fading. The standard colour code is RAL 6005 (green).
Panel fence is preferred for its decorative, modern appearance, high strength and long-term resistance to outdoor conditions. Our products are packaged and delivered on pallets.
Panel Fence Sizes and Technical Specifications
- Wire thicknesses: 4 mm, 4.30 mm, 4.50 mm, 5 mm, 6 mm
- Mesh size: 6×15 cm; a 5×15 cm option is also available for 5 mm and 6 mm wire thickness
- Panel length: 2000 – 2500 mm
- Heights: 50, 75, 100, 120, 150 and 200 cm; every wire thickness is produced in all of these heights
- Colour: RAL 6005
Connection hardware
- Clip: made from UV-resistant polyamide material.
- Cap: made from UV-resistant polyamide material.
- Steel anchor: 10×70 mm, used to fix the posts, unaffected by vibration and zinc-coated against rust.
Panel Fence Types
We manufacture several panel fence types at our facility in Aksaray to meet different security and appearance needs.
Galvanized panel fence
Hot-dip galvanized wires provide long-term resistance to rust. With its unpainted galvanized look, it is preferred as a garden fence in industrial areas and harsh weather conditions.
Welded mesh panel fence (spot-welded panel)
Made from spot-welded mesh wires; it is the most common solution for enclosing gardens and residential compounds and can be produced with different mesh sizes.
PVC-coated green panel fence
Electrostatic powder coating is applied over the galvanized wire. With colour options led by RAL 6005 green, it blends in with landscaped areas.
3D panel fence
The bend channels on the panel surface add extra rigidity and resist deformation on wide spans and tall panels.
Panel Fence Application Areas
- Parks, gardens and villa enclosures
- Residential areas and housing compounds
- Sports complexes
- Construction sites
- Airports
- Private security zones and private premises
Panel Fence or Fence Wire?
Both products are used to enclose gardens, compounds and land; the difference lies in their structure. Panel fence is a rigid, spot-welded panel, while fence wire is a woven wire mesh supplied in rolls and stretched between posts.
Panel fence is the right choice for a straight, sag-free line and a modern look; if you need to enclose a long stretch of land economically or build a tall enclosure, fence wire stands out. We explain panel fence's structure and its difference from turf fence in our what is panel fence article.
How Is Panel Fence Length Calculated?
When requesting a quote, the first thing we need is the length of the line to be enclosed. For a rough calculation:
- Number of panels: line length ÷ panel length (2000 or 2500 mm). Fractions are rounded up to the next full panel.
- Number of posts: one more than the number of panels on a straight line. Every corner and gate opening is counted separately.
- Connection hardware: clips per panel, a cap for each post; a steel anchor (10×70 mm) per post for concrete ground or wall-top installation.
The ground determines the post type: a concrete post is often preferred on soil ground, while posts are fixed with anchors on concrete ground and wall tops.
Factors That Determine Panel Fence Price
- Wire thickness (4, 4.30, 4.50, 5 or 6 mm)
- Panel height (50, 75, 100, 120, 150 or 200 cm)
- Coating type: galvanized or oven paint over galvanized
- Total length and the resulting number of panels, posts and clips
- Post type and any need for a top security layer
- Delivery location
We explain the calculation in detail in our panel fence price calculation article. For the current panel fence price, send us your length through our contact page; we will prepare a quote for you from our factory.
Extra Security on Top of Panel Fence
In areas with a high security requirement, razor wire or barbed wire is added on top of the panel fence. If you need a narrower-mesh panel against climbing and cutting, high security fence (358 fence, 12×62 mm mesh) is the right choice.
Why Choose Konakoğulları Panel Fence?
- Manufacturer: We have been producing since 1972 in Aksaray Organized Industrial Zone, on a 20,000 m² open and 6,000 m² covered area.
- Production capacity: We manufacture 800,000 m² of panel fence annually.
- Fully automatic production: Panels are produced by spot-welding on fully automatic machines, then packaged and shipped on pallets.
- Complementary products from one source: You can source posts, connection hardware, razor wire and barbed wire from the same manufacturer.
Some of our panel fence projects: Gümüşhane Söğütlü Municipality panel fence and razor wire and Kayseri Transportation Directorate supply centre panel fence and posts. All our projects are on our references page.
Frequently Asked Questions
What is panel fence?
Panel fence is a rigid, oven-painted fence panel made by spot-welding galvanized wires and reinforcing them with V-bends. It is also known as 3D fence or panel wire fence.
What are the types of panel fence?
The main types are galvanized panel fence, welded mesh (spot-welded) panel fence, PVC-coated green panel fence and 3D panel fence. For a narrower-mesh security panel, see our high security fence. For a general comparison, check our panel fence types article.
What is the panel fence colour code?
The standard colour code is RAL 6005 green. You can request a quote for other colour options through our contact page.
What is the difference between panel fence and fence wire?
Panel fence is a rigid panel welded from 4–6 mm wire and attached to posts with clips. Fence wire is woven from 2–3.5 mm wire, comes in 20 m rolls and is stretched between posts.
How are panel fence prices calculated?
Price is determined by wire thickness, panel height, coating type and total length. Send us your length to get a current quote from the manufacturer.
Related Products
- High security fence (358 fence): narrow-mesh panel against cutting and climbing
- Fence wire: galvanized wire mesh in rolls for long stretches
- Turf fence: green privacy screen fitted over panel fence
- Concrete post: panel fence post for soil ground
Technical Specifications
Select a variant and compare specifications. All dimensions can be customized to project requirements.
Our reference projects
All references →Get a quote for your project
Share your measurements and product details, and our sales team will prepare a detailed price quote within 48 hours. Special pricing is available for public tenders and large-scale projects.
